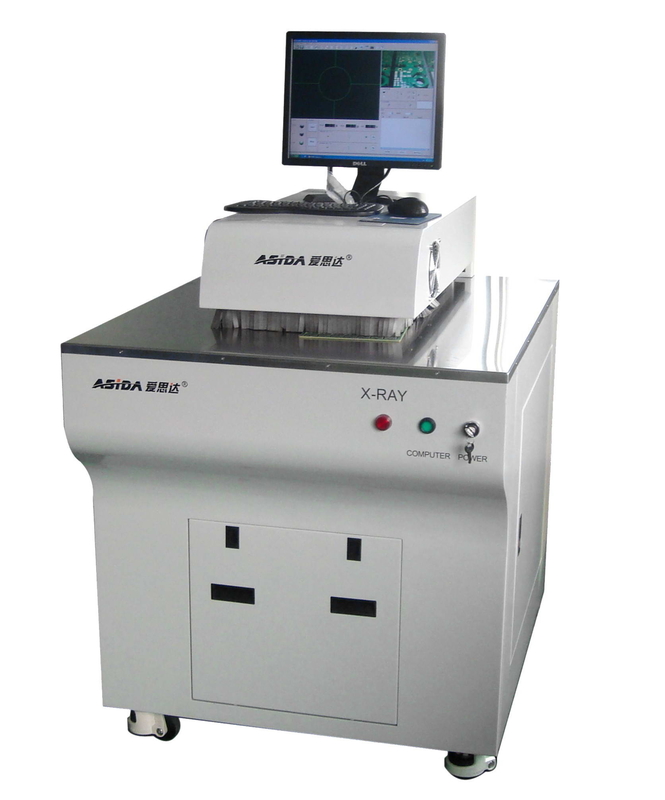

X-ray inspection machine
Product Details:
| Place of Origin: | China |
| Brand Name: | ASIDA |
| Model Number: | XG3100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|
|
Detail Information |
Product Description
X-ray inspection machine
Usage:It is used to observe and measure positioning holes on the PCB, to check whether the holes between layers are deviated, a variety of conditional measurement can be conducted on the images, including the distance from the center of a circle to another, from one point to another, circle area, etc., it can also make the judgements according to the setup parameters.
Features
1.positioning holes on the PCB.
3.The equipment is controlled by CAN network computer controlling system, which is simple and easy to operate.
4.It is equipped with CCD navigation functions to facilitate the mobile test, and quickly search the test objectives.
5. It adopts sealed micro focus X-ray tube and a variety of image processing techniques and software to reduce the image distortion
6.The image can be measured under different conditions, such as the distance from the center of concentric circles, point to point distance, circle area,etc.
Technical parameter
|
item
|
Specification
|
|
|
Model
|
XG3000
|
|
|
X-CCD resolution
|
752×582pixel
|
|
|
X-ray tube parameters
|
Maximum Voltage
|
50KV
|
|
Maximum current
|
1mA
|
|
|
Maximum power
|
50W
|
|
|
Preheating time
|
6min
|
|
|
X-ray image intensifier
|
6-inch view
|
|
|
Visual area
|
Φ18mm
|
|
|
Spatial resolution
|
21 lp/mm
|
|
|
Navigation CCD resolution
|
HD
|
|
|
PCB size
|
Width 45 "(throat depth 630mm)
|
|
|
Maximum thickness
|
12mm
|
|
|
X-ray shield target
|
0.5µSv/h No more than 0.5µSv/h
|
|
|
Cooling mode
|
Strong wind cooling
|
|
|
Temperature and humidity
|
Temperature: 22 ℃ ± 3 ℃ Humidity: 50% ± 10%
|
|
|
Magnification
|
8×-64×
|
|
|
Printer
|
Printer (user distribution)
|
|
|
Operating mode
|
1.manually move the tested PCB, navigation CCD tracking
2.setting X-ray open when sending PCB boards, and close when taking
|
|
|
Power requirements
|
Single-phase 220v, without water and gas
|
|
|
Dimensions
|
including monitor
|
|
|
Weight
|
130kg
|
|
In accordance to JB/T5054, JB/T5055-2001 mechanical design Standard
In accordance to EN13861-2002 ergonomic requirements;
In accordance to GB19517-2004 electrical safety requirements;
In accordance to GB18871-2002 Ionizing Radiation Protection and safety of radiation sources basic standards;
In accordance to EN13861-2002 ergonomic requirements;
In accordance to GB19517-2004 electrical safety requirements;
In accordance to GB18871-2002 Ionizing Radiation Protection and safety of radiation sources basic standards;
In accordance to IPC-A-600G PCB acceptable quality specifications requirements;
