X-ray Inspection Machine for Detecting and Measuring Positioning Holes on PCB
Product Details:
| Place of Origin: | China |
| Brand Name: | ASIDA |
| Model Number: | XG3000/XG3300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set / sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Negotiation |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Measuring Accuracy: | 50μm | Resolution: | 21 Lp/mm |
|---|---|---|---|
| Efficiency: | 1～3PCS/min | ||
| High Light: | pcb board testing equipment,circuit board testing equipment |
||
Product Description

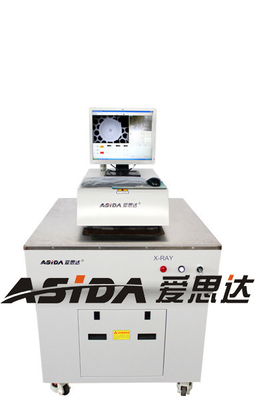

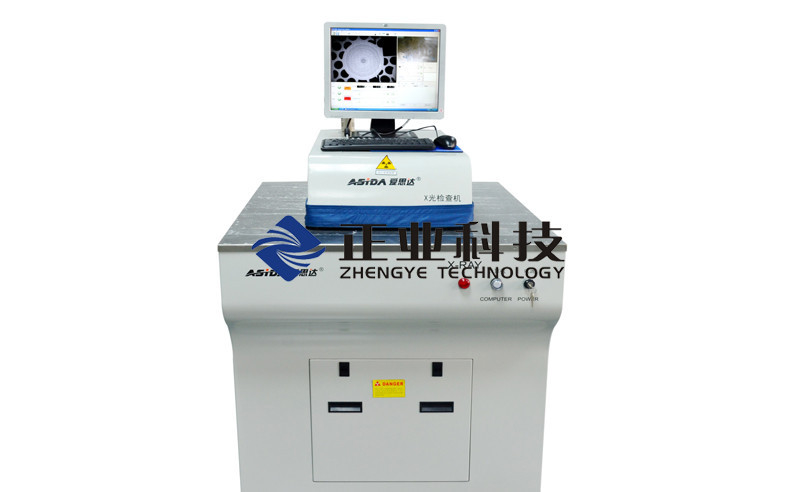

X-ray Inspection Machine for Detecting and Measuring Positioning Holes on The PCB
Product Attributes:
|
Product name |
X-ray Inspection Machine |
|
Brand Name: |
ASIDA |
|
Model Number: |
XG3000 |
|
Place of Origin: |
China |
|
Packaging Details: |
Wooden Carton |
X-ray Inspection Machine USE:
The instrument is used in detecting and measuring positioning holes on the PCB to check deviation
between layers
X-ray Inspection Machine Features:
1, Precision :
① Adopting sealed micro focus X-ray tube and high-quality imaging system;
② Take a variety of image processing and measuring techniques.
2, Efficient:Real-time observation, visual navigation and positioning.
3, Safety: Taking Triple protection technology (sealed micro focus X-ray tube, semi-enclosed lead protective structure and double-lead rubber protective curtain).

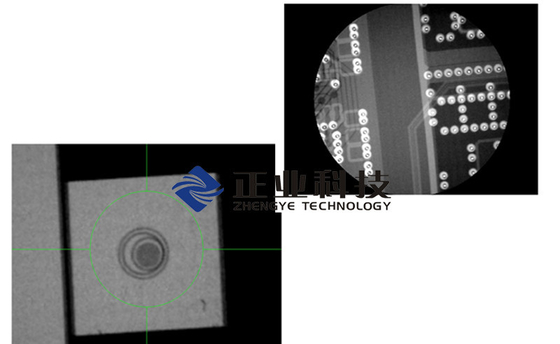

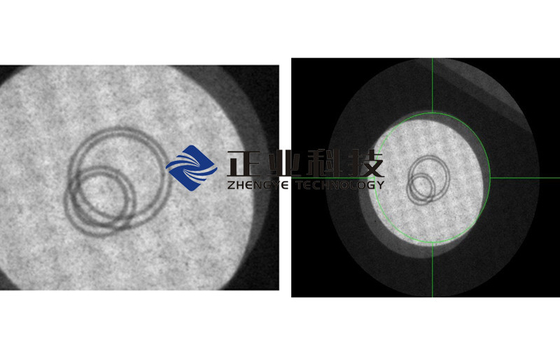

Examples:
X-ray Inspection Machine Client:
|
ITEM |
XG3000 |
XG3300 |
|
|
Accuracy |
①Measuring accuracy |
50μm |
|
|
②Resolution |
21 lp/mm |
||
|
③observation target exactly |
|||
|
Efficiency |
1～3PCS/min |
||
|
Object |
≤26 layers of PCB |
≤22 layers of PCB |
|
|
Radiation leak |
≤0.5μSV/h |
||
|
Dimensions |
1040*855*1510mm |
||
|
Weight |
130Kg |
||
The Undertaking services:
The warranty of our company's equipment is 12 months. During the warranty period, we will be responsible for the repair of re-placement the damaged or broken-down equipment free, except that the malfunction is caused by the customer' fault.
We will respond to the technical problem putted forward by the customer within one hour. If the equipment breks dowm ,our cpmpany guarantee that we will send maintenance staff to solve the problem wihtin 48 hours. As for the customers in remote areas, we will negotiate with customers about the time.
We have established nationwide network of maintenance services of equipments. We will track the equipmtent during its life cycle, and appoint officers to visit the customers regularly ( call customer quarterly ), so sa to discover the potential failure and resovle it.Taking precautionary measures makes equipment in good working condition .
