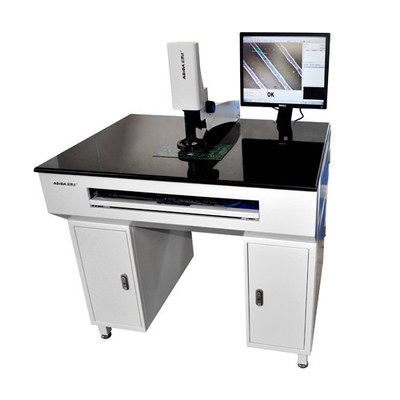

Line Width PCB Tester For IC FiLMS And LCD , Resolution 0.4 - 2.6μm / Pixel
Product Details:
| Place of Origin: | China |
| Brand Name: | ASIDA |
| Model Number: | XK22/XK23 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set / sets |
|---|---|
| Packaging Details: | Negotiation |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Measuring Accuracy: | ±1 | Resolution: | 0.4～2.6μm/pixel |
|---|---|---|---|
| Total Magnification: | 70～450X | PCB Width: | ≤760mm |
| Field Of View: | 0.53×0.4～3.4mm×2.5mm | Line Width: | ≥20μm |
| High Light: | pcb board testing equipment,circuit board testing equipment |
||
Product Description
Line Width Teste for PCB / PCB Line Width Teste / PCB Line Width for IC FiLMS and LCD
Product Attributes:
|
Product name |
Line Width Teste |
|
Brand Name: |
ASIDA |
|
Model Number: |
XK22/XK23 |
|
Place of Origin: |
China |
|
Packaging Details: |
Wooden Carton |

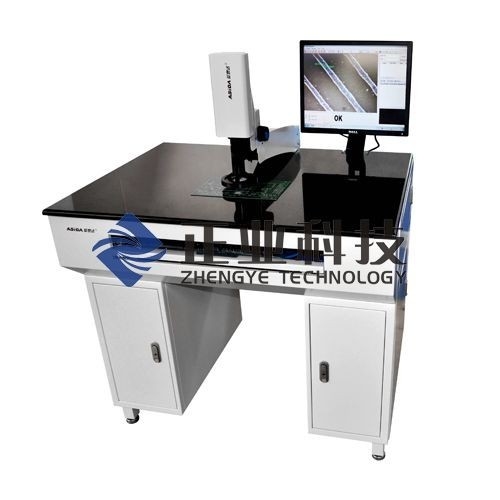

Line Width Tester USE:

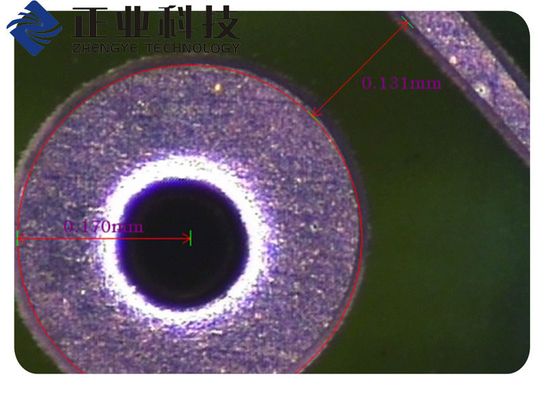

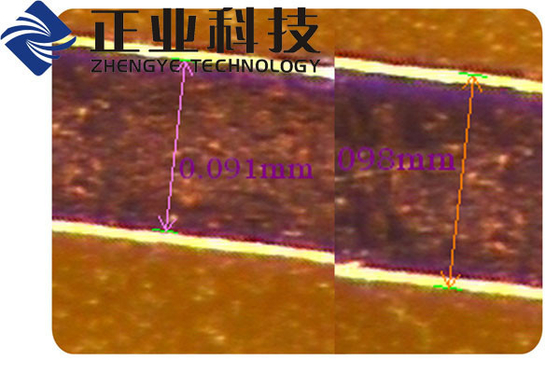

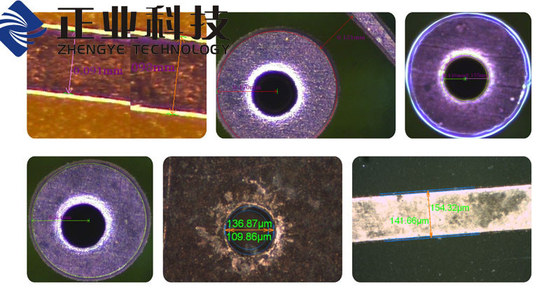

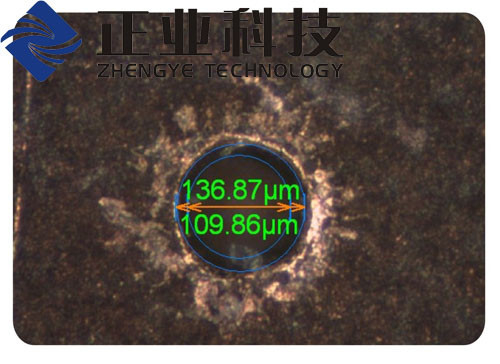

This machine is mainly used to measure the widths of inner and outer range of semi PCBs after etching
(before solder masking).In addition,the distance between two lines,distance between holes and edge and
diameters of different holes and arcs can also be measured.
Expanding usage:measure widths of IC wafer,thickness of films,LCD boards,etc.
Line Width Tester Features:
1, Precise : Adopting high-precision focus distance adjustable device,image processing,
automatic boundary and sub-pixel algorithms technologies.
2, Efficient: ① Red LED positioning; ② Automatic boundary technology; ③ Perfect function of SPC statistics.
Examples:
Line Width Tester Client:
|
Accuracy |
① Measuring Accuracy:±1 |
|
|
② Resolution:0.4～2.6μm/pixel |
||
|
③ Total magnification:70～450X |
||
|
④ Optics magnification: 1.4×~9× continuously adjustable |
||
|
Objects |
① PCB Width:≤760mm |
|
|
② Field of view:0.53×0.4～3.4mm×2.5mm |
||
|
Line width:≥20μm |
||
|
Appearance dimension |
XK22 |
XK23 |
|
|
960*700*1280mm |
960*780*1280 |
|
weight |
145Kg |
190Kg |
The Undertaking services:
The warranty of our company's equipment is 12 months. During the warranty period, we will be responsible for the repair of re-placement the damaged or broken-down equipment free, except that the malfunction is caused by the customer' fault.
We will respond to the technical problem putted forward by the customer within one hour. If the equipment breks dowm ,our cpmpany guarantee that we will send maintenance staff to solve the problem wihtin 48 hours. As for the customers in remote areas, we will negotiate with customers about the time.
We have established nationwide network of maintenance services of equipments. We will track the equipmtent during its life cycle, and appoint officers to visit the customers regularly ( call customer quarterly ), so sa to discover the potential failure and resovle it.Taking precautionary measures makes equipment in good working condition .
