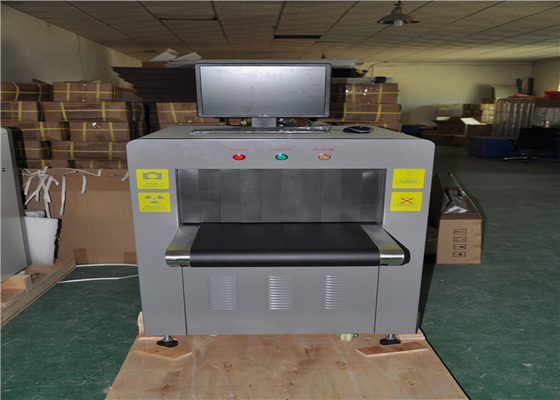

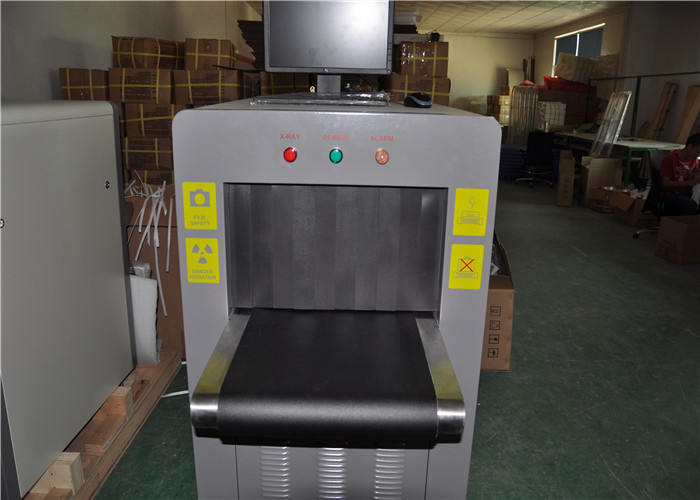

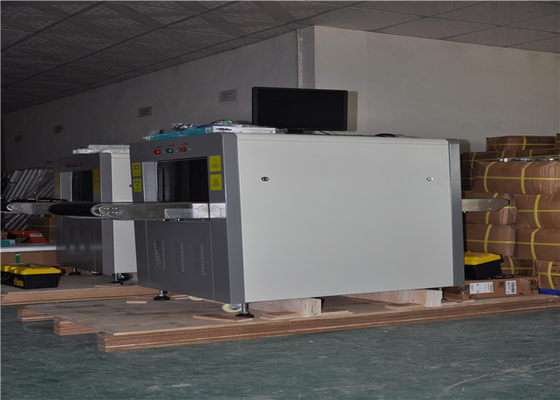

White 5030A X-Ray Inspection Machine For Airport Bus / Station / Railway Station

high standard security inspection machine X-ray baggage scanner 5030A





1.Main Features



Alarm by sounds&light: Alarm by sound and light when confirm to condition



Network interface: It can connect to local area network and support multi-terminal check baggage at same time.



Safty ray: Transmit ray under automatic control, avoiding any baggage missing.



Image monitoring for user-friendly: The monitor use fold, rotary system, operators, adjusts the monitor position willfully according to our own need, reduce wearily.



Simple operation by mouse: Without keyboard and work table, control by mouse, save space.

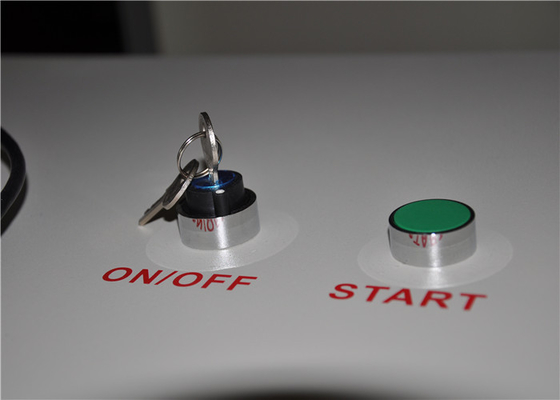

Turn off a key control: Turn off the machine only need one step, revolove the key then the equipment automatic secuirty close down and no need complex steps.



Eagle-eye: It can be expediently observing enlarged area.



Estimate malfunction by self: Automatic estimate malfunction and prompt message, helpful for maintenance.







2.Technical data



Tunnel size: 505(W)x305(H) mm



Conveyor speed:0.16m/s



Single inspection dosage: <0.1mr



Wire resolution: 0.1mm metal line



Steel penetration: 5mm amor plate



Film safety: for ISO 1600



Maxmum leakage radiation: <0.1mr/H







3.X-Ray generator



Orientation: vertically upward



Tube current: 0.4-0.5MA(adjustable)



Anode voltage: 80KV(adjustable)



Angle: 60 degree



Generator cooling/working periods, sealed oil bath with forced air/100%







4.Image performance system



X-ray sensor: 1 Type photo-diode array detector, 120bit



Monitor: High resolution 17inch color led display



Color quality: 24 bit real colors



Edge enhancement: object contour edge is more distinct



Super image enhancement: image detail is more distinct



High penetrate strength display: increase brightness of dark area in image to diplay object which is behind high absorption mass distinctly



Low penetrate strength display: increase brightness of image/decrease brightness of image



Image recurrence: display previous twenty images and process any one of them



Image restoration: restore image to initial status at the time of stopping conveyor



Image storing: real time store any image and process it in operation status







5.Multi-energy function



Multi-energy color: display organic material for orange, display inorganic material for blue, and display mixture for green



High enery/low energy: switch to display tow energy type, high energy stands for metal etc, low energy stands for non metallic



Auxilitay function for drugs &explosives: help to detect such dangerous material as drugs&explosives ect



Audible&visible alarm: give sound and visible signal when confirming to condition







6.Operating environment



Storage temperature: -20°C to 60°C



Operating temperature:0 °C to 45 °C



Relative humidity: 20 to 95% non-condensing



System power:220VAC (±10%) 50±3HZ



Power wastage: 1.0KW(max)



Noise: <65DB
