High TG 250 Polyimide PCB, 6 layers RF PCB Design For IC Testing Equipment
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | VIASION |
| Certification: | UL, ISO9001, TS16949 |
| Model Number: | VRF202 |
|
Detail Information |
|||
| High Light: | print circuit board,double sided pcb |
||
|---|---|---|---|
Product Description

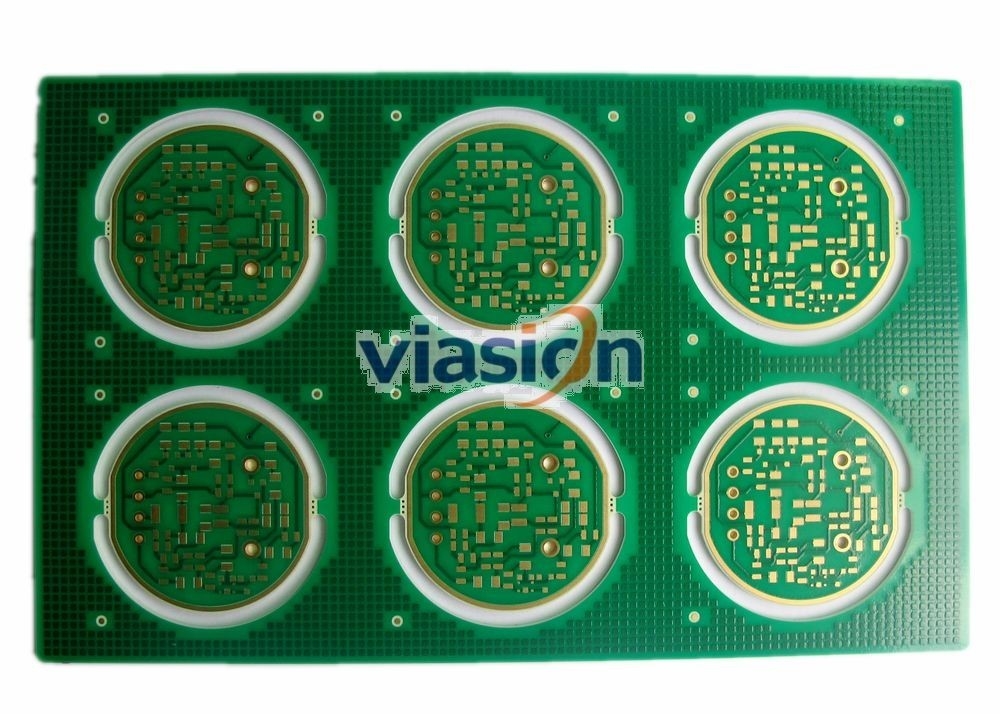

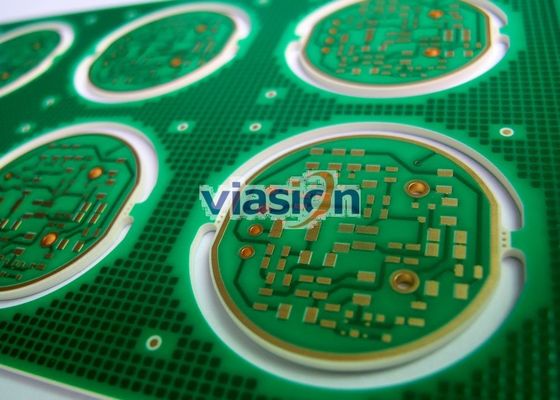

High TG 250 Polyimide PCB, 6 layers RF PCB Design For IC Testing Equipment
Specifications:
|
Material |
Alron 35N |
|
Layer count |
6 layers |
|
Board thickness |
1.6mm |
|
Copper thickness |
1oz |
|
Minimum drill size |
0.2mm |
|
Minimum trace & gap |
0.1mm |
|
Surface finish |
Immersion gold |
|
Applications |
IC testing |
|
Special Technology |
High TG 250 polyimide material (Alron 35N) |
PCB Circuit Board
|
NO |
ITEM |
Technical capabilities |
|
1 |
Layers |
1-20 layers |
|
2 |
Max. Board size |
508×610 mm |
|
3 |
Min. board Thickness |
2-layer 0.12mm |
|
4-layer 0.4mm |
||
|
6-layer 0.6mm |
||
|
8-layer 0.90mm |
||
|
10-layer 1mm |
||
|
4 |
Min. line Width/Space |
0.127mm(4mil) |
|
5 |
Max. Copper thickness |
5OZ |
|
6 |
Min. S/M Pitch |
0.075mm(3mil) |
|
7 |
Min. hole size |
0.15mm(6mil) |
|
8 |
Hole dia. Tolerance (PTH) |
±0.05mm(2mil) |
|
9 |
Hole dia. Tolerance (NPTH) |
+0/-0.05mm(2mil) |
|
10 |
Hole position deviation |
±0.05mm(2mil) |
|
11 |
Outline tolerance |
±0.10mm(4mil) |
|
12 |
Twist & Bent |
<0.7% |
|
13 |
Insulation Resistance |
100MΩ Normal |
|
14 |
Electric strength |
>1.3kv/mm |
|
15 |
S/M abrasion |
>6H |
|
16 |
Thermal stress |
288°C 20Sec |
|
17 |
Test Voltage |
50-300V |
|
18 |
Min. blind/buried via |
0.15mm (6mil) |
|
19 |
Surface Finished |
HAL, ENIG, OSP, Plating AG, Plating gold,HAL tin, silver |
|
20 |
Materials |
FR4,H-TG,Teflon,Rogers,Ceramics,Aluminium, Copper base, CEM-3, CEM-1, Halgenfree |
Applications:
Communications
Traditional telecommunication equipment, FTTP, VOIP, multimedia services, data networking and IT infrastructure products, wireless infrastructure products, power amplifiers, splitters and combiners, high power transistors, etc.
Computer Peripherals
High end printers, cable modem, wireless routers, IP telephones, consumer and office products, banking system etc.
Consumer
Computers, televisions, cameras, digital video recorders (DVR), handheld products, LED, etc.
Automotive
Passenger safety systems, engine control systems, air bags, traction control products, etc.
High End Computing and Storage
High performance computer and server, mainframe system and storage equipment, memory, etc.
Industry
Power supply, main control panel, monitor, CCTV products,automotive control equipment, industry robot, access control products etc
Medical
Magnetic resonance imaging (MRI), computed tomography (CT), emergency response defibrillation units, patient monitoring, implantable devices, robotic surgery systems, biometrics and diagnostic equipment, etc.
Military
Satellite, radar, airplane, control unit, communication equipment .etc.
Test & Measurement
Power meters, electricity tester, thermal tester, light tester, network tester, gas and oil tester, infrared products, semi-conductor test equipment, DUT and probe cards, wafer inspection systems, etc.
