Automatic Laboratory Testing Equipment For minor Sample Cutting / Lab Testing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | ASIDA |
| Model Number: | QY22 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set / sets |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | negotiation |
| Payment Terms: | T/T |
| Supply Ability: | negotiation |
|
Detail Information |
|||
| Samples Cutting Dimension: | 5×5×mm～50×50mm | Max Width Of Available Sample Board: | 508mm |
|---|---|---|---|
| Min Dimension Of Available Sample Board: | 120*100mm | Available Sample Board Thickness: | 0.5~8mm |
| High Light: | lab testing equipment,laboratory testing machine |
||
Product Description

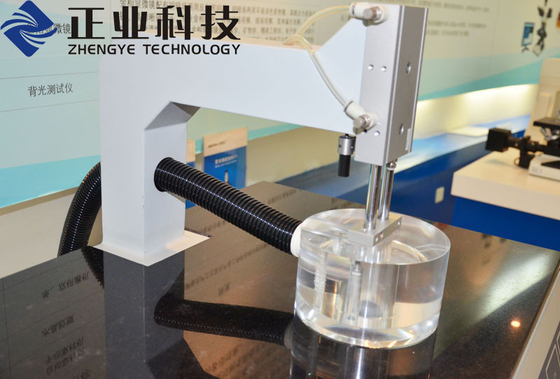

Automatic Sample-cutting Machine QY22
Product Attributes:
|
Product name |
Automatic Sample-cutting Machine |
|
Brand Name: |
ASIDA |
|
Model Number: |
QY22 |
|
Place of Origin: |
China |
|
Packaging Details: |
Wooden Carton |
Automatic Sample-cutting Machine Use:
This machine is used in minor sample cutting when conducting metallographic analysis of production processes and fini-shed productions of copper clad laminate and rigid printed circuit board.
Automatic Sample-cutting Machine Features:
High-quality pneumatic components and accurate X-Y work table,which increases the accuracy of sample cutting.
Clear sample-cutting process,safe&reliable,no dust or noise.
Patented design,flexible programming, wide range of sample cutting.
Automatic Sample-cutting Machine Parameters:
|
ITEM |
SPECIFICATION |
|
model |
QY22 |
|
samples cutting dimension |
5×5×mm～50×50mm |
|
max width of available sample board |
508mm |
|
min dimension of available sample board |
120×100mm |
|
available sample board thickness |
0.5～8mm |
|
depth |
280mm |
|
milling cutter specification |
Φ2.0 Φ2.4mm |
