270L Neutral Salt Spray Corrosion Test Chamber , PVC Coating Corrosion Testing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | LIYI |
| Model Number: | LY-609-90 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | US$999~2999/set |
| Packaging Details: | export polywood packing |
| Delivery Time: | 7 - 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
|
Detail Information |
|||
| Test Chamber Capacity(L): | 270L | Test Chamber Size: | 90*60*50 Cm |
|---|---|---|---|
| Max Volum Of Test Liquid(L): | 108L | Volume: | 141*88*128cm |
| Voltage: | 220V | Controller: | PID Controller |
| Warranty Period: | 12 Months | Usage: | Salt Spray Corrosion Test Chamber |
| Power: | Electronic | Material: | PVC Material |
| High Light: | salt spray corrosion test chamber,salt spray test equipment |
||
Product Description

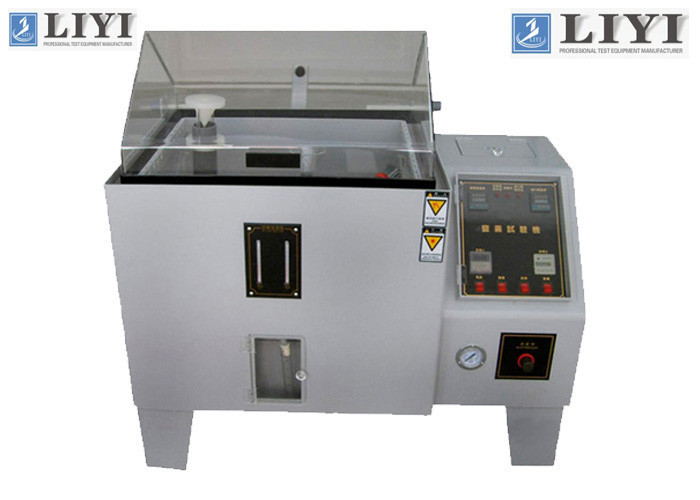

270L Neutral Salt Spray Corrosion Test Chamber , PVC Coating Corrosion Testing Equipment
Introduction:
Salt spray test chamber can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect.
Design standards:
ISO9227,CNS3627,3885,4159,7669,8886,JIS D-0201,H-8502,H-8610,K-5400,Z-2371,ISO 3768,3769,3770,ASTM B-117,B-268,GB-T2423,GJB 150.

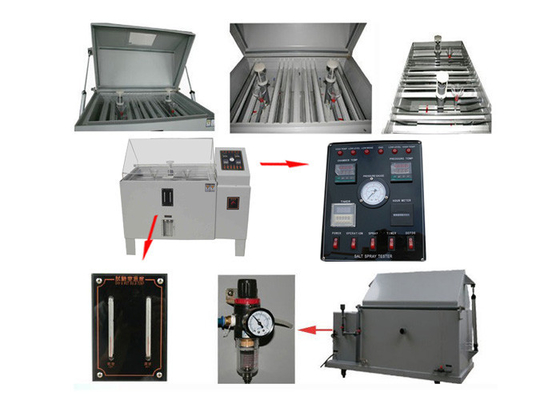

Characteristics:
1,PID controller.
2,Entire PVC sheet material, the internal ring with the use of advanced three-dimensional flutter high technology products, strong structure, fresh, never deformation and
acid and alkali, high temperature and never aging, for salt spray, copper acetate, and other
test specifications.
3,Controller are in the same panel, the operation simple and clear.
4,Neutral salt spray (NSS), acetic acid salt spray ( AASS ), copper accelerated salt spray ( CASS )
either of the test laboratory
5,The cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample.
6,A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow.
7, Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
The Main Technical Parameter:
| Model: | LY-609-90 |
|
Inner Box Size (L×W×H) |
90×60×50 cm |
| Outside Box Size(L×W×H) : | 114×88×128 cm |
| Temperature Range : | 35°C~55 °C |
| Temperature Fluctuations : | ≤±0.5°C |
| Temperature Uniformity : | ±1°C |
| Brine Temperature : | 35°C±1°C |
| Spray Quantity : | 1.0~2.0 ml / 80cm2 / hr |
| Lab Volume : | 270L |
| Brine Tank Capacity : | 25L |
| Power : | AC220V,10A |
| Accessories : | Testing Salt/ Measuring tank/ Equipment each 1 set |
| Equipment Material | Both inside & outside shell adopt imported P.V.C rigid plastic board, and tank cover uses imported transparent P.V.C. rigid plastic board |
| Test Chamber Temperature | Salt Spray Method (NSS ACSS)35±1°C Corrosion-resistant Testing Method(CASS)50±1°C |
| Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47±1°C Corrosion-resistant Testing Method(CASS)63±1°C |
| PH | Salt Spray Method (NSS ACSS6.5~7.2)Corrosion-resistant Testing Method(CASS)3.0~3.2 |
| Multiple Safety Protection Devices : | Current discharge protection, over pressure protection,over temperature protection, over load fuse protection |
