Precision Laser Cutting Machine for Flexible Printed Circuit With High Speed At 150mm/s
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ASIDA |
| Certification: | CE |
| Model Number: | JG18 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1SET/SETS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | Negotiation |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Cutting Speed: | ≥150mm/s（ZHENGYE Conditions） | Maximum Processing Size: | 610X460mm Or 610×500mm（Optional） |
|---|---|---|---|
| Dimensions: | 1800*1600*1700mm | Weight: | 2500Kg |
| High Light: | small laser cutting machine,Automatic Laser Cutting Machine |
||
Product Description

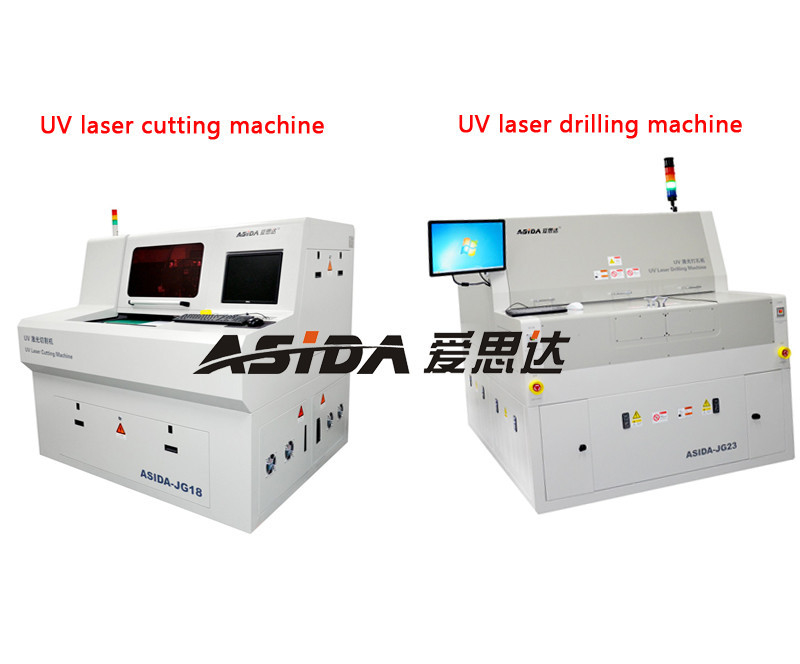

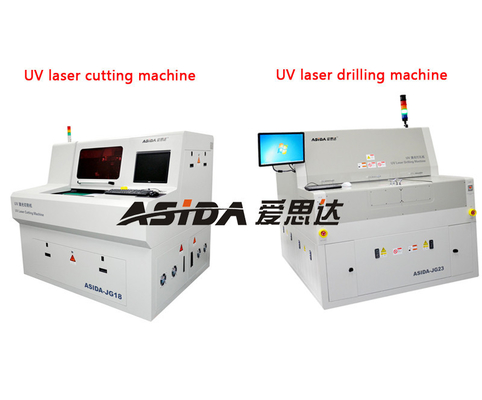

High Speed UV Laser Cutting & Drilling Machine for FPC and Coverlay
Product Attributes:
|
Product name |
UV Laser Cutting Machine |
|
Brand Name: |
ASIDA |
|
Model Number: |
JG18 |
|
Certification: |
CE |
|
Place of Origin: |
China |
|
Packaging Details: |
Wooden Carton |
UV Laser Cutting Machine USE:
The machine is used in cutting,opening the window and uncovery for CVL/FPC/RF and thin multilayer
board, as well as cutting a variety of substrates, such as ceramic, silicon etc.
UV Laser Cutting Machine Features:
1, Precision: Adopting linear motor module,Servo control,sizing compensation,optical positioning
and secondary positioning technologies.
2, High quality: little carbonization; high density graphics cutting.
3, Highly intelligent,efficient:With multi-panels cutting,auto-positioning,auto-correcting,automatic sizing compensation and exclusive cutting previews functions.
UV Laser Cutting Machine Client:
|
Accuracy |
①System processing accuracy:±20μm (ZHENGYE conditions) |
|
②Positioning accuracy:±3μm |
|
|
③Repeat accuracy:±1μm |
|
|
Cutting speed |
≥150mm/s(ZHENGYE conditions) |
|
Objects |
①Cutting thickness:≦1.0mm |
|
②Maximum processing size:610X460mm or 610×500mm(Optional) |
|
|
Dimensions |
1800*1600*1700mm |
|
Weight |
2500Kg |

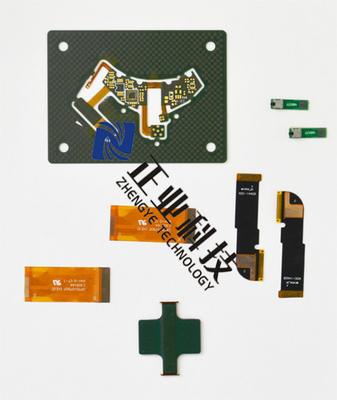

Cutting Examples:
Certification:
The Undertaking services:
The warranty of our company's equipment is 12 months. During the warranty period,
we will be responsible for the repair of re-placement the damaged or broken-down
equipment free, except that the malfunction is caused by the customer' fault.
We will respond to the technical problem putted forward by the customer within one
hour. If the equipment breks dowm ,our cpmpany guarantee that we will send
maintenance staff to solve the problem wihtin 48 hours. As for the customers in
remote areas, we will negotiate with customers about the time.
We have established nationwide network of maintenance services of equipments. We
will track the equipmtent during its life cycle, and appoint officers to visit the
customers regularly ( call customer quarterly ), so sa to discover the potential
failure and resovle it.Taking precautionary measures makes equipment in good
working condition .
