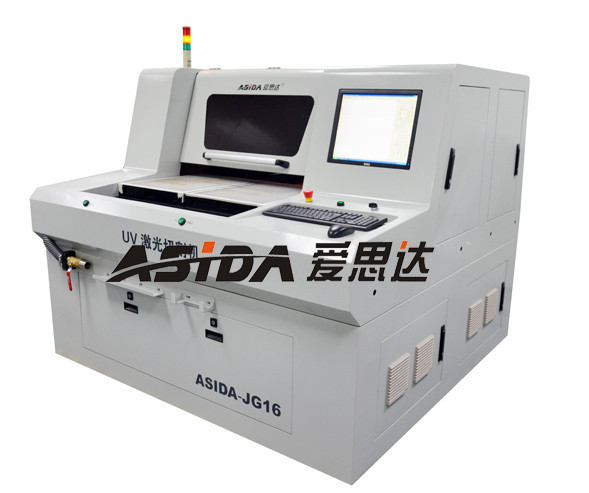

CVL RF FPC UV Laser Cutting Machinery / Laser Cutting Device 380V / 50Hz / 5.5KW
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Certification: | CE |
| Model Number: | JG16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set / sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Product Name: | UV Laser Cutting Machine | Cutting Thickness: | ≦1.0mm |
|---|---|---|---|
| Positioning Accuracy: | ±3μm | Repeat Accuracy: | ±1μm |
| High Light: | laser cutting machinery,Automatic Laser Cutting Machine |
||
Product Description
Product Attributes:
|
Product name: |
UV Laser Cutting Machine |
|
Brand Name: |
ASIDA |
|
Model Number: |
JG18 |
|
Certification: |
CE |
|
Place of Origin: |
China |
|
Packaging Details: |
Wooden Carton |
UV Laser Cutting Machine USE:

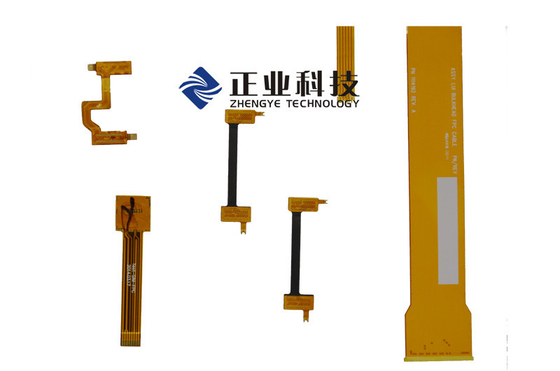

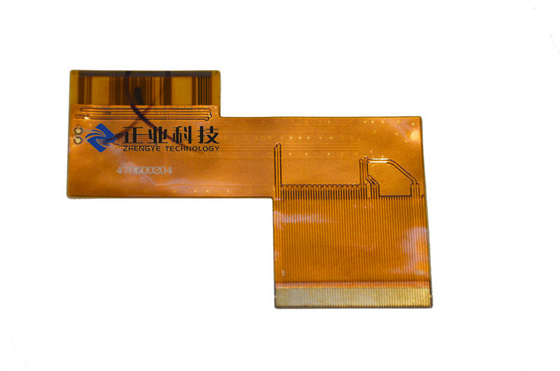

The machine is used in cutting,opening the window and uncovery for CVL/FPC/RF and thin
multilayer board, as well as cutting a variety of substrates, such as ceramic, silicon etc.
UV Laser Cutting Machine Features:
1, Precision: Adopting linear motor module,Servo control,sizing compensation,optical positioning
and secondary positioning technologies.
2, High quality: little carbonization; high density graphics cutting.
3, Highly intelligent,efficient:With multi-panels cutting,auto-positioning,auto-correcting,automatic sizing compensation and exclusive cutting previews functions.
UV Laser Cutting Machine Technical parameters:
|
Item |
Specification |
|
MODEL |
JG18 |
|
Laser Source |
All-solid-state UV laser cutting device, wavelength 355nm |
|
Laser Power |
10W |
|
Maximum Processing Size, |
610mm×460 mm(24″×18″) |
|
XY Platform Maximum Operating Speed |
50m/min |
|
Cutting Thickness |
≦1.0mm |
|
Power |
AC 220V/50Hz/2.2KW;380V/50Hz/5.5KW |
|
Vacuum Requirements |
516m3/h |
|
Overall Dimensions |
1818mm×2317 mm×1550 mm |
|
Weight |
3500kg |
|
Environmental Temperature |
20℃±1℃ |
|
Humidity |
＜60%RH (No dew) |
|
Ground Amplitude |
＜5µm |
|
Vibration Acceleration |
＜0.05G |
|
Ground Pressure |
2200kgf/m2 |
|
Industry-specific control machine, computer equipped with flexible processing software |
Motion control card with industry machine controls Equipped with 17”screen, 100GB hard disk Standard G code, Gerber data, CAD-compatible |
