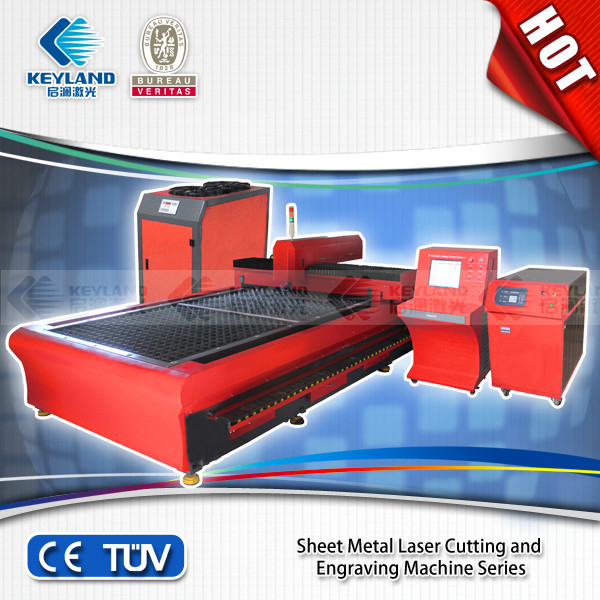

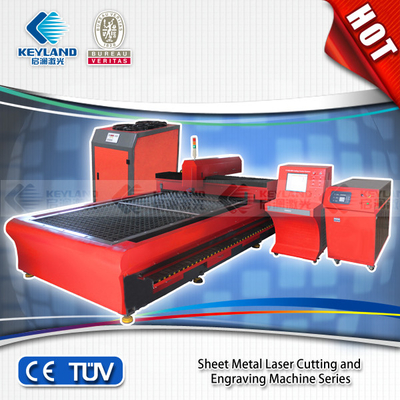

High efficiency Sheet metal laser cutting machine for stainiess steel, carbon steel,aluminum,copper, titanium
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Keyland /Gosun |
| Certification: | CE ISO9001 TUV |
| Model Number: | KQG-1530C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | FOB shanghai/shenzhen USD 18000-60000 |
| Packaging Details: | Keyland Standard Pylwood case |
| Delivery Time: | 15-20 working days after received 30% deposit |
| Payment Terms: | T/T L/C |
| Supply Ability: | 200 sets per month |
|
Detail Information |
|||
| High Light: | metal laser cutting machine,High efficiency metal laser cutting machine,laser cutting machine for stainless steel,carbon steel,aluminum,copper,titanium |
||
|---|---|---|---|
Product Description
High efficiency Sheet metal laser cutting machine for stainiess steel, carbon steel,aluminum,copper, titanium
Applications:
Metal processing, precision cutting,precision instruments,medical equipment,eyeglasses and cloks,craft gift, Auto parts, instruments,and metal-related industries; Adpat to the cutting material:stainiess steel, carbon steel,aluminum,copper, titanium,etc..
Technology Characters:
1.Imported key components;
2.High precision:the positioning accuracy of 0.05mm,repeat positioning accuracy of 0.02mm;
3.Kerf narrower:kerf width is generally 0.10-0.20mm;
4.Smooth cutting surface: control in Ra 12.5;
5.Speed: cutting speed up to 4.5m/min,the maximum positioning speed is up to 10m/min;
6.No Workpieve thermal deformation,can process any graphics, you can cut the tubing and other profiles;
7.No mold, computer programming,can be products of different shapes for the entire board material cut;
8.Maximize the utilization of materials, increase the speed of new product development.
the main technical parameters:
| Product Name | Sheet Metal Laser Cutting Machine Series | |||
| Type Sepcification | KQG-1530C | |||
| Laser wave length | 1064nm | |||
| Laser Power | 500W | 600W | ||
| Working platform size | 3000*1500mm | |||
| X/Y axis positioning accuracy | ±0.05mm/m | |||
| X/Y axis fast-moving speed | 10m/min | |||
| X/Y axis max cutting speed | 4m/min | |||
| Min cutting line width | 0.2mm | |||
| Max cutting thickness | stainless steel 3mm,carbon steel 6mm | |||
| Chiller | 5P | |||
| Floor Space | 3*5m | |||
Some Details and Cutting Samples:
Comany Introductions:
Keyland Laser is supported by State Key Laboratory of Laser Technology and National Engineering Research Centre for laser Maching.We provide pragmatic style, scientific attitude, innovative spirit and professional team for large customers with satisfactory service.
Jiangsu Keyland Laser Technology Co., Ltd own a excellent R&D, producing, service technical team, the key members have over 20 years experience of equipment marking, about 10 years working experience on industry application such as PV power, advertising ect.
Engineers available to service machinery overseas.
Research and Development:
Keyland on Fairs:
Certifications:
