2015 new price usb interface red dot laser engraving cutting machine co2 laser cutter engraver for wood fabric acrylic
Product Details:
| Place of Origin: | China |
| Brand Name: | Keyland/Gosun |
| Certification: | CE ISO9001 TUV |
| Model Number: | KQG-6040 KQG-1060 KQG-1390 KQG-1612 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 2900-5900 |
| Packaging Details: | International Standard Packaging Plywood Carton |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T L/C |
| Supply Ability: | 300 sets per month |
|
Detail Information |
|||
| High Light: | co2 laser cutter engraver,laser engraving cuttting machine,laser machine price |
||
|---|---|---|---|
Product Description
2015 new price usb interface red dot laser engraving cutting machine co2 laser cutter engraver for wood fabric acrylic
Applications:
Advertising industry,clothing decoratioon, furniture, model manufacturing,and handicraft industry.The manchine is widely applied in the fine engraving,cutting and hollowing out on nonmetallic materials like acrylic,organic board,double color plate, plank,bamboo product, paper,glass,etc,with all kinds of characters, graphs, images,trademarks and so on.
Technology Characters:
1.USB offine/online, reading U flash
2.the double guide rail, step drive,belt transmission,routway feeding
3.up&down worktable,the honey -comb striation, the circulation of water cooling,the hydraulic protection,exclusion of dust and smoke, the huff protection
4.the proprietary software which supports the output of various files formart:PLT,BMP,DXF,DST,T100,etc.
the Main Technical Parameters :
| Product Name | Laser Cutting and Engraving Machine |
| Type Sepcification | KQG-6040 KQG-1060 KQG-1390 KQG-1612 |
| Laser Power | 40W/60W/80W/100W/120W/150W |
| Working platform size | 600*400MM 1000*600MM 1300*900MM 1600*1200MM |
| Cutting Speed | 0-500mm/s |
| Engraving speed | 0-1000mm/s |
| the accuracy of repeated orientation | ≤±0.025mm |
| Connecting ways | USB offline |
| Cooling ways | Circulation water of cooling |
| Power | 220v/50Hz/1kVA |
| Optional Configuration: | Rotary device; Metallic RF laser tube |

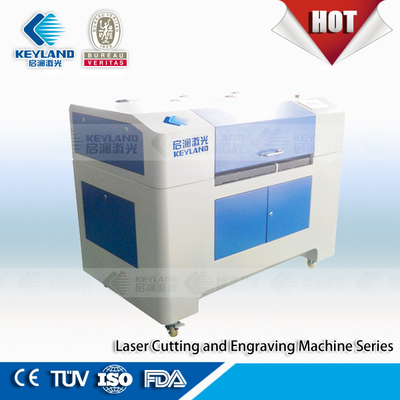

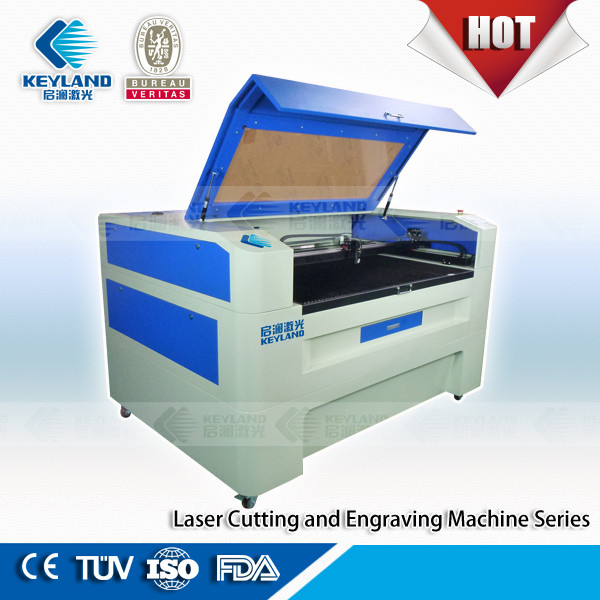

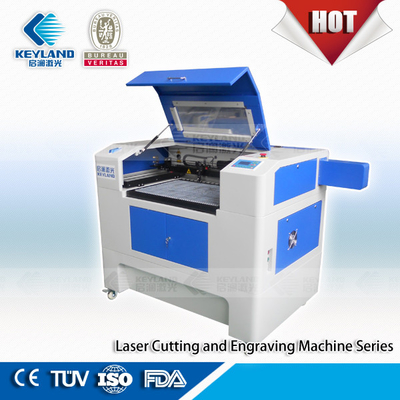

KQG-6040/1060/1390/1612
Laser cutting and engraving machine(wokring table can be adjusted up&down) Available
Details of Products:
Available materials:
Cnc laser cutting machine available materials | Cut | Engrave |
Acrylic, Plexiglass, Pmma, Perspex, Organic board, Double color plate | √ | √ |
Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, polyester or polyimide membrane keyboards | √ | √ |
Wood, Bamboo, Veneer, MDF, Balsa wood, Plywood | √ | √ |
Leather, Pig leather, Cow Leather, Sheep leather | √ | √ |
Textile, cotton, silk, felt, lace, synthetic & technical textiles, aramid, polyester, fleece | √ | √ |
Foam& Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR) | √ | √ |
Paper, Cardboard, Chipboard, Press Board | √ | √ |
Stone, Ceramic, Granite, Marble, Natural stone, Pebble stone, Slate | × | √ |
Rubberstamps, Synthetic & Silicone Rubber, Natural rubber, Microporous foam | √ | √ |
Glass, Pressed glass, Float glass, Crystal glass, Mirror glass | × | √ |
Cutting and Engraving Samples:
Company Introduction:
Keyland Laser is supported by State Key Laboratory of Laser Technology and National Engineering Research Centre for laser Maching.We provide pragmatic style, scientific attitude, innovative spirit and professional team for large customers with satisfactory service.
Jiangsu Keyland Laser Technology Co., Ltd own a excellent R&D, producing, service technical team, the key members have over 20 years experience of equipment marking, about 10 years working experience on industry application such as PV power, advertising ect.
Engineers available to service machinery overseas.
R&D:

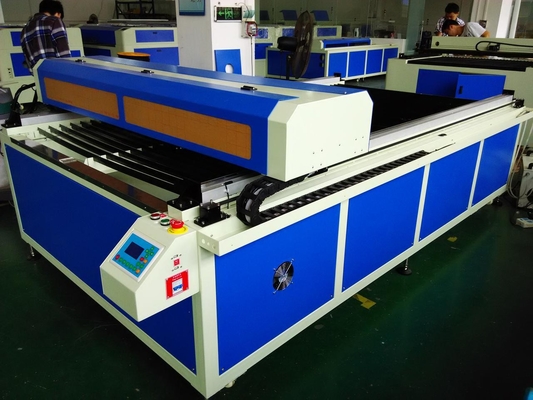

Workshop:
Keyland on Fairs:
Certifications:
