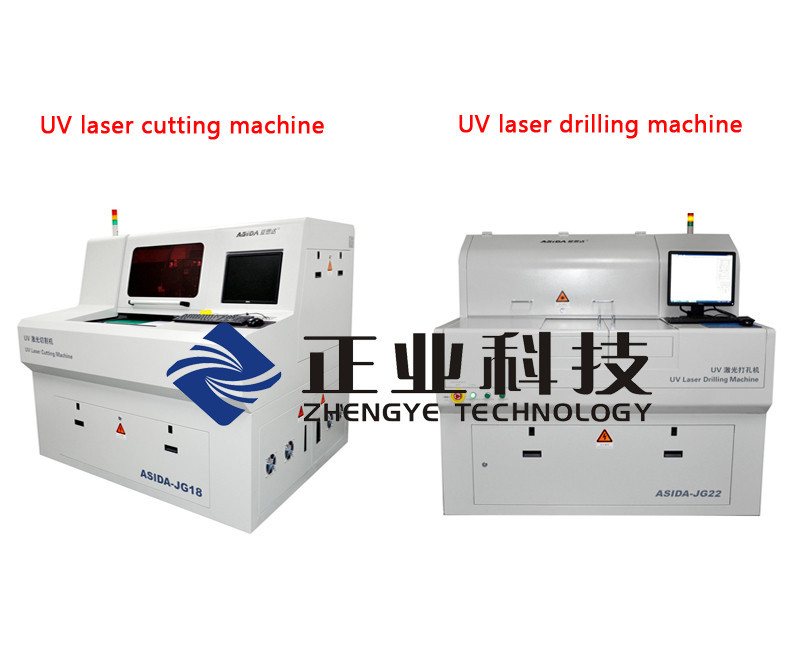

Automatic Control Laser Drilling Machine For Blind Hoes Of FPC And Cutting The CVL / RF
Product Details:
| Place of Origin: | China |
| Brand Name: | Asida |
| Certification: | CE |
| Model Number: | JG23 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set / Sets |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Carton |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Product Name: | UV Laser Drilling Machine | Drilling Speed: | >300 Holes Per One Second |
|---|---|---|---|
| Roundness: | ≥95% | Minimum Processing Hole Diameter: | 25μm |
| High Light: | laser drilling equipment,pcb drilling machine |
||
Product Description
FPC Lasre Drilling Machine / RF Lasre Drilling Machine / CVL Lasre Drilling Machine
Product Attributes:
|
Product name: |
UV Laser Drilling Machine |
|
Brand Name: |
ASIDA |
|
Model Number: |
JG23 |
|
Place of Origin: |
China |
|
Packaging Details: |
Wooden Carton |
UV Laser Drilling Machine USE:
The machine is used in drilling through-holes,blind hoes of FPC and cutting the CVL/FPC/RF.
UV Laser Drilling Machine Characteristics :
1. Safe and reliable: fully enclosed design, automatic control of worktable door to ensure safe operation.2. Automation: Auto focus, auto-correction, auto-positioning, auto-homing, automatic spot compensation, and intelligent design.
3. Energy measuring: Automatically measure energy on the samples.
4. High drilling / cutting precision: Using ultra-high-precision scanning galvanometer, fully guaranteed drilling, cutting accuracy and quality.
5. Multi-panels cutting: With function to cutting array panels.
6. Optical optimization: High peak power and high pulse energy, fine focal spot, ensure cutting and drilling with high speed and high precision.
7. Convenient operation: Drilling and cutting with independent module, easy conversion.
8. Optimize design: Optimization of laser processing path function, reduce processing time and improve efficiency.
UV Laser DrillingMachine Technical parameters :
|
Project |
Specifications |
|
Model |
ASIDA-JG23 |
|
System processing accuracy |
±25μm(ZHENGYE conditions) |
|
Drilling speed |
>300 holes per one second |
|
Roundness |
≥95% |
|
Differences between up and down hole diameter |
10um |
|
Objects |
①Maximum processing size:560X650mm |
|
②Minimum processing hole diameter:25μm |
|
|
③Drilling through-holes,blind hoes |
|
|
Machine size |
1600mm×1733mm×1940mm |
|
Weight |
2300Kg |

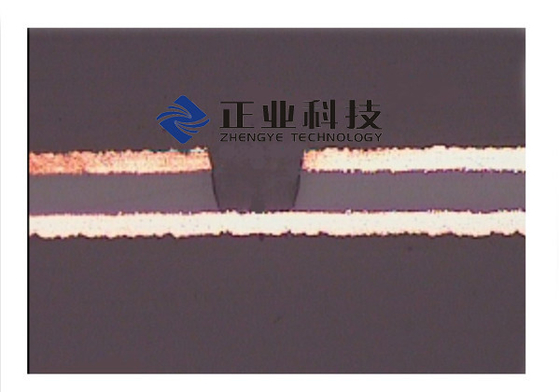

Drilling Samples :
